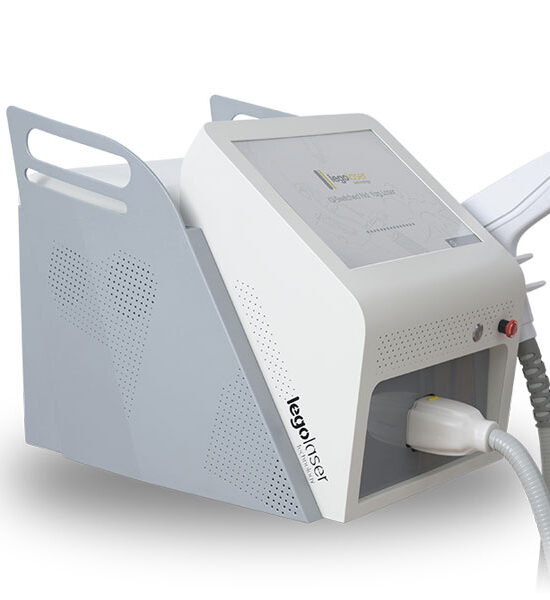

Q-Switched Infinity Pro

Endless power and durability

Q-Switched Nd: Yag Infinity Pro dual wavelength (1064 nm and 532 nm) is a Q-switched laser mainly used for pigment treatments as well as tattoo removal, peeling or bleaching among others, featured by providing high energy in a very short time (6 nanoseconds).

Loading...

Information

Information

Q-S Infinity Pro emits 1064 nm wavelength (optimal on epidermis), which thanks to the glass of titanyl potassium diphosphate (KTP) becomes to 532 nm wavelength (effective on dermis). This frequency doubler allows changing wavelength from 1064 nm (infrared) to wavelength of 532 nm (green) giving to the QS-Nd: YAG / KTP two wavelengths into one compact system.This high energy in such a short space of time produces a photoacoustic effect with mechanical shock on tissues focused to fragment the pigment. The pigment is removed by three possible mechanisms when the Q-switched laser is applied on the skin:

  • Fragmentation of the pigment in small particles (less than 6 microns) to facilitate elimination through phagocytosis via lymphatics.
  • Chemical alteration of the pigment it less visible to the human eye.
  • Pigment can be decreased to some extent by the trans epidermal elimination.

Beam Features – OPT Technology

Beam Features – OPT Technology

Q-Switched Infinity Pro provides a flat-top beam with an intensity profile, offering a square and stable pulse in all pulses delivered energy. This flat top beam is translated into more effective treatments, markedly shortening the number of sessions. Flat top beam is in contrast to Gaussian beams, where the intensity smoothly decays from its maximum on the beam axis to zero.

The technology OPT (Optimal Pulse Technology) offers a square and stable pulse in all pulses delivered energy.

Gaussian beam mode

Perfect Top-Hat Mode

Perfect Top-Hat Mode

Main Features

Main Features

Quasi long pulse

400ns-500ns pulse width @1064nm enables treatment performance without damaging surrounding tissues.

Stable power supply

Makes possible to optimise energy delivery even during long time treatments.

Laser autocalibration system

It assures highest beam quality as well as equal energy delivery in every treatment.

Automatic spot size

It ensures optimal focus on different target areas according to the treatment needs (Ø 2, 3, 4, 5, 6, 7, 8, 9, 10 mm).

Two handle spots

1064 nm spot for rejuvenation treatments, and dual 532nm – 1064nm spot for rest of treatments.

Flat top beam

It translates into more effective treatments, markedly shortening the number of sessions.

Applications

Applications

1. Pigmented lesions, lentigos, melasma, brown spots, nevus ( Becker, Ota, Ito…)

1/2 sessions

2. Tattoo removal, dark and light colours.

5/6 sessions

3. Carbon peeling, rejuvenation, pore sealing, tightening…

1 session

4. Acne, Onychomycosis, bleaching…



Technical sheet

Technical sheet

Laser type Nd Yag Q-Switched
Wavelength / Spot 1064nm – 532nm
Spot automatically adjustable 1064nm – 532nm + KTP
Laser Lamp 20.000.000 Shots
Articulated Arm 7 mirrors with multiapplication
Equipment power 3.500 w
Screen size LCD 15″ Color
Software English and Others
Software Memory 25 parameters
Protection System Auto-Reset
Spot Size 1064 nm – 532 nm (Ø 2, 3, 4, 5, 6, 7, 8, 9, 10) mm
Guide light 635nm, 5mW
Pulse width (Single Pulse) 6-8ns (Ultra short Pulse)
Pulse width (Dual Pulse) 8-500ns (Quasy Long Pulse)
Laser Energy 100 to 2600 mj
Shot frequency 1 – 10 Hz
Cooling system 7 Liters Water (Superior quality) + Air
Noise Level 50 db
Power voltage 220 V / 110 V
Equipment size / weight 100 cm x 40 cm x 100 cm / 94 kg
Export pack size / weight 120cm x 60 cm x 120 cm / 130 kg
